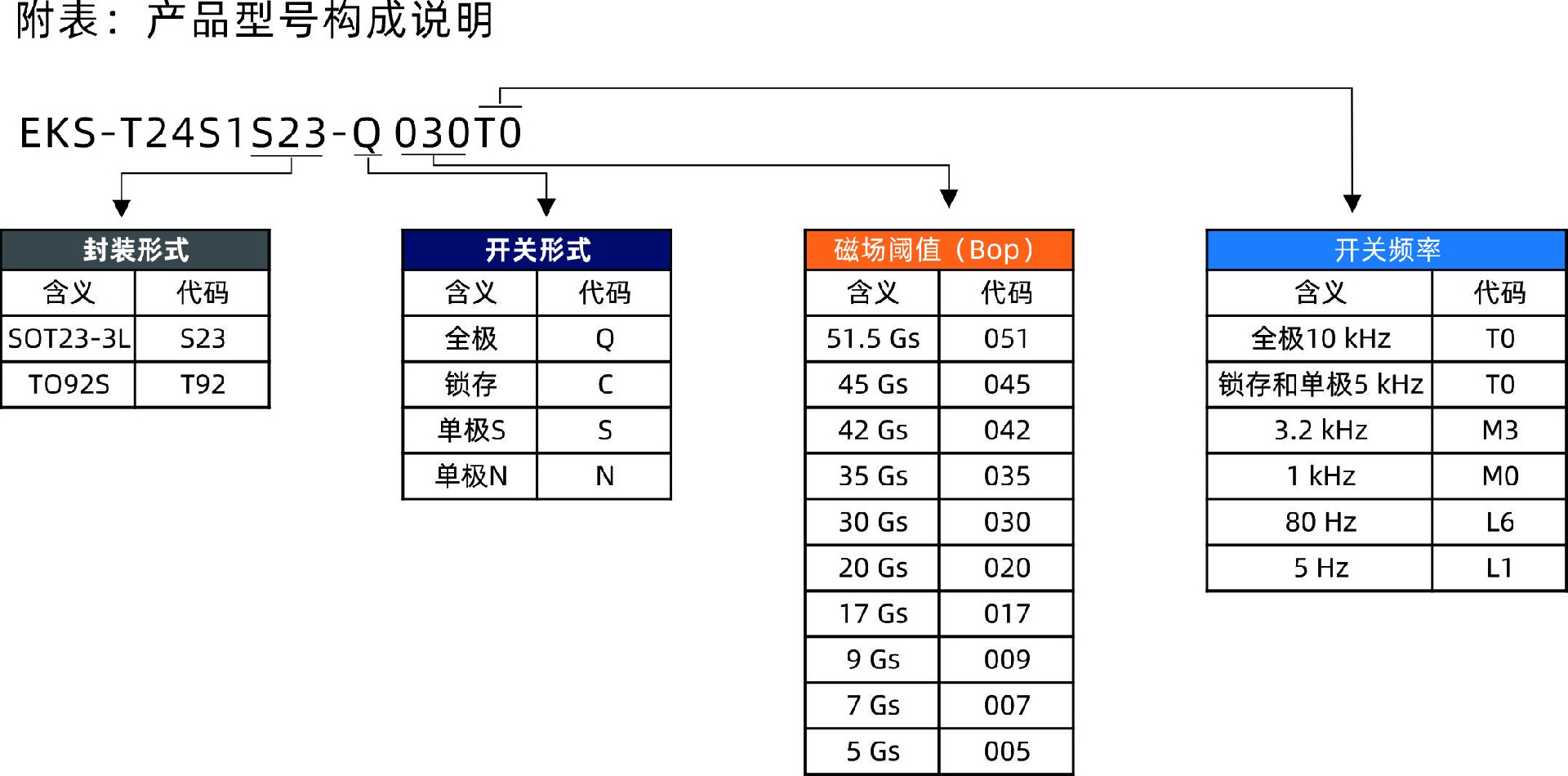

| Switch Mode | OP magnetic threshold （GS） | Package Type | Switching Frequency | |||||
| 10kHz | 5kHz | 3.2kHz | 1kHz | 80Hz | 5Hz | |||
| Bipolar Latch | 45 | TO-92S | / | EKS-T24S1T92-C045T0 | EKS-T24S1T92-C045M3 | EKS-T24S1T92-C045M0 | EKS-T24S1T92-C045L6 | EKS-T24S1T92-C045L1 |
| 30 | TO-92S | / | EKS-T24S1T92-C030T0 | EKS-T24S1T92-C030M3 | EKS-T24S1T92-C030M0 | EKS-T24S1T92-C030L6 | EKS-T24S1T92-C030L1 | |
| 17 | TO-92S | / | EKS-T24S1T92-C017T0 | EKS-T24S1T92-C017M3 | EKS-T24S1T92-C017M0 | EKS-T24S1T92-C017L6 | EKS-T24S1T92-C017L1 | |
| 9 | TO-92S | / | EKS-T24S1T92-C009T0 | EKS-T24S1T92-C009M3 | EKS-T24S1T92-C009M0 | EKS-T24S1T92-C009L6 | EKS-T24S1T92-C009L1 | |
| 5 | TO-92S | / | EKS-T24S1T92-C005T0 | EKS-T24S1T92-C005M3 | EKS-T24S1T92-C005M0 | EKS-T24S1T92-C005L6 | EKS-T24S1T92-C005L1 | |
| Switch Mode | OP magnetic threshold （GS） | Package Type | Switching Frequency | |||||
| 10kHz | 5kHz | 3.2kHz | 1kHz | 80Hz | 5Hz | |||
| Omnipolar | ±51.5 | TO-92S | EKS-T24S1T92-Q051T0 | / | EKS-T24S1T92-Q051M3 | EKS-T24S1T92-Q051M0 | EKS-T24S1T92-Q051L6 | EKS-T24S1T92-Q051L1 |
| ±42 | TO-92S | EKS-T24S1T92-Q045T0 | / | EKS-T24S1T92-Q045M3 | EKS-T24S1T92-Q045M0 | EKS-T24S1T92-Q045L6 | EKS-T24S1T92-Q045L1 | |
| ±35 | TO-92S | EKS-T24S1T92-Q035T0 | / | EKS-T24S1T92-Q035M3 | EKS-T24S1T92-Q035M0 | EKS-T24S1T92-Q035L6 | EKS-T24S1T92-Q035L1 | |
| ±30 | TO-92S | EKS-T24S1T92-Q030T0 | / | EKS-T24S1T92-Q030M3 | EKS-T24S1T92-Q030M0 | EKS-T24S1T92-Q030L6 | EKS-T24S1T92-Q030L1 | |
| ±20 | TO-92S | EKS-T24S1T92-Q020T0 | / | EKS-T24S1T92-Q020M3 | EKS-T24S1T92-Q020M0 | EKS-T24S1T92-Q020L6 | EKS-T24S1T92-Q020L1 | |
| ±17 | TO-92S | EKS-T24S1T92-Q017T0 | / | EKS-T24S1T92-Q017M3 | EKS-T24S1T92-Q017M0 | EKS-T24S1T92-Q017L6 | EKS-T24S1T92-Q017L1 | |
| ±9 | TO-92S | EKS-T24S1T92-Q009T0 | / | EKS-T24S1T92-Q009M3 | EKS-T24S1T92-Q009M0 | EKS-T24S1T92-Q009L6 | EKS-T24S1T92-Q009L1 | |
| ±7 | TO-92S | EKS-T24S1T92-Q007T0 | / | EKS-T24S1T92-Q007M3 | EKS-T24S1T92-Q007M0 | EKS-T24S1T92-Q007L6 | EKS-T24S1T92-Q007L1 | |
| Switch Mode | OP magnetic threshold （GS） | Package Type | Switching Frequency | |||||
| 10kHz | 5kHz | 3.2kHz | 1kHz | 80Hz | 5Hz | |||
| Unipolar S | 45 | TO-92S | / | EKS-T24S1T92-S045T0 | EKS-T24S1T92-S045M3 | EKS-T24S1T92-S045M0 | EKS-T24S1T92-S045L6 | EKS-T24S1T92-S045L1 |
| 30 | TO-92S | / | EKS-T24S1T92-S030T0 | EKS-T24S1T92-S030M3 | EKS-T24S1T92-S030M0 | EKS-T24S1T92-S030L6 | EKS-T24S1T92-S030L1 | |
| 17 | TO-92S | / | EKS-T24S1T92-S017T0 | EKS-T24S1T92-S017M3 | EKS-T24S1T92-S017M0 | EKS-T24S1T92-S017L6 | EKS-T24S1T92-S017L1 | |
| 9 | TO-92S | / | EKS-T24S1T92-S009T0 | EKS-T24S1T92-S009M3 | EKS-T24S1T92-S009M0 | EKS-T24S1T92-S009L6 | EKS-T24S1T92-S009L1 | |
| Switch Mode | OP magnetic threshold （GS） | Package Type | Switching Frequency | |||||
| 10kHz | 5kHz | 3.2kHz | 1kHz | 80Hz | 5Hz | |||
| Unipolar N | -45 | TO-92S | / | EKS-T24S1T92-N045T0 | EKS-T24S1T92-N045M3 | EKS-T24S1T92-N045M0 | EKS-T24S1T92-N045L6 | EKS-T24S1T92-N045L1 |
| -30 | TO-92S | / | EKS-T24S1T92-N030T0 | EKS-T24S1T92-N030M3 | EKS-T24S1T92-N030M0 | EKS-T24S1T92-N030L6 | EKS-T24S1T92-N030L1 | |
| -17 | TO-92S | / | EKS-T24S1T92-N017T0 | EKS-T24S1T92-N017M3 | EKS-T24S1T92-N017M0 | EKS-T24S1T92-N017L6 | EKS-T24S1T92-N017L1 | |
| -9 | TO-92S | / | EKS-T24S1T92-N009T0 | EKS-T24S1T92-N009M3 | EKS-T24S1T92-N009M0 | EKS-T24S1T92-N009L6 | EKS-T24S1T92-N009L1 | |
Datasheet
Download
