Dual Hollow-shaft Magnetic Angle Encoder

Series Overview:
Magnetic Angle Encoders achieve absolute detection of rotation angle and speed, with no homing needed at power-on. Based on in-house xMR magnetoresistive technology, they offer two mature schemes, PRBS Code and Vernier Code, delivered as a complete PCBA and code disc / magnet BOM material set. They come in large-hollow-joint and shaft-mounted versions; up to 24-bit resolution, 30 kHz high refresh rate, shock and vibration resistant, and tolerant of oil and dust.
Applications: humanoid / quadruped robot joints, medical arms, collaborative servo, high-precision turntables.

•

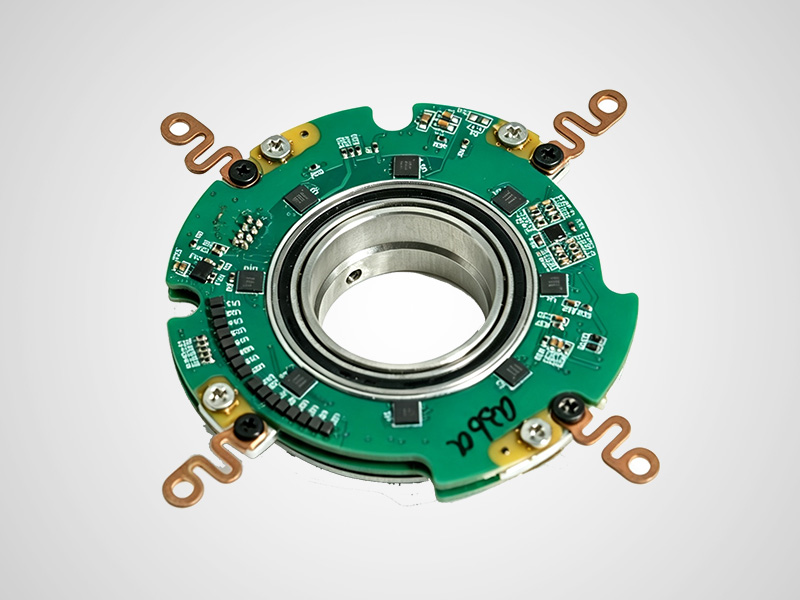

  EAS-048

  Dual Hollow-shaft Single-turn Absolute Angle Encoder

  • ● Hollow-shaft dual encoder design
    ● Self-calibration mode, no constant-speed rotation required
    ● Multi-pole-pair design, high accuracy
    ● High resolution: 24-bit
    ● Effective resolutio···
  Learn More
•

  EAS-043-D

  Dual Hollow-shaft Single-turn Absolute Angle Encoder (Integrated Type + Split Type)

  • ● Integrated-plus-split fused hollow design
    ● Two encoders, small overall thickness
    ● Single-turn absolute angle
    ● Effective resolution: 0.0002°
    ● Repeatability: 0.0019°
    ● Commu···
  Learn More
•

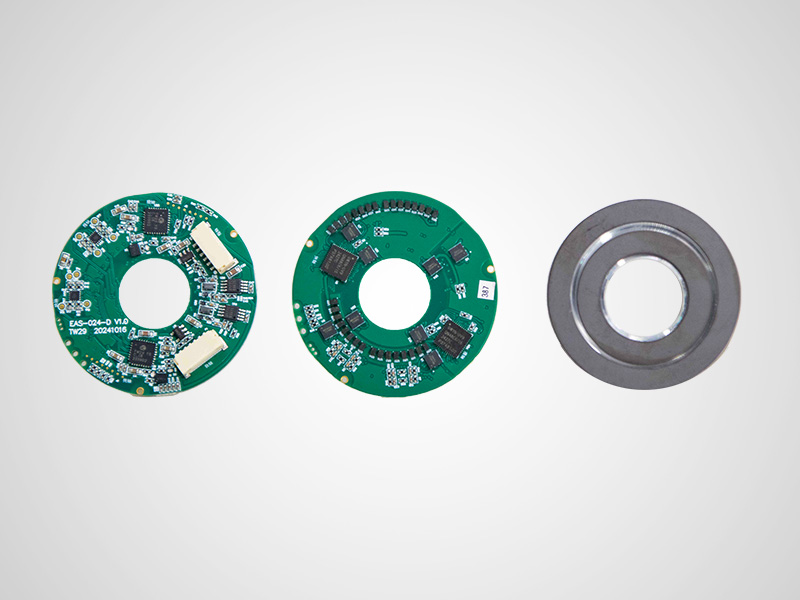

  EAS-024

  Dual Hollow-shaft Single-turn Absolute Angle Encoder

  • ● Split hollow-shaft inner-outer dual encoding design
    ● Single-turn absolute angle detection
    ● High resolution: 24-bit
    ● Effective resolution: inner encoding 0.0003°; outer encoding 0.00···
  Learn More
•

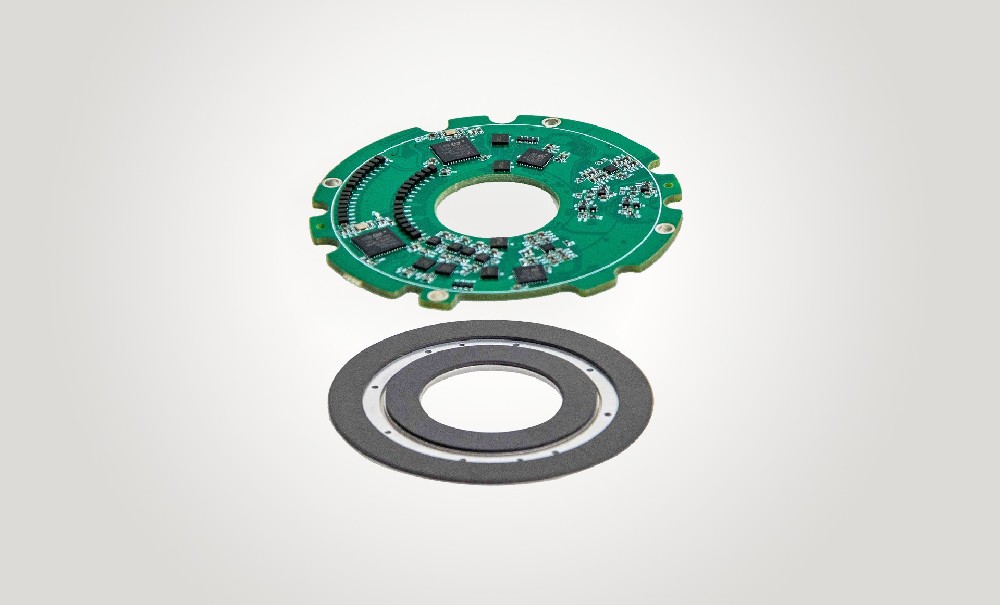

  EAS-057

  Dual Hollow-shaft Single-turn Absolute Angle Encoder

  • ● Hollow-shaft inner-outer dual encoder design
    ● Self-calibration mode, no constant-speed rotation required
    ● Multi-pole-pair design, high accuracy
    ● High resolution: 24-bit
    ● Effecti···
  Learn More
